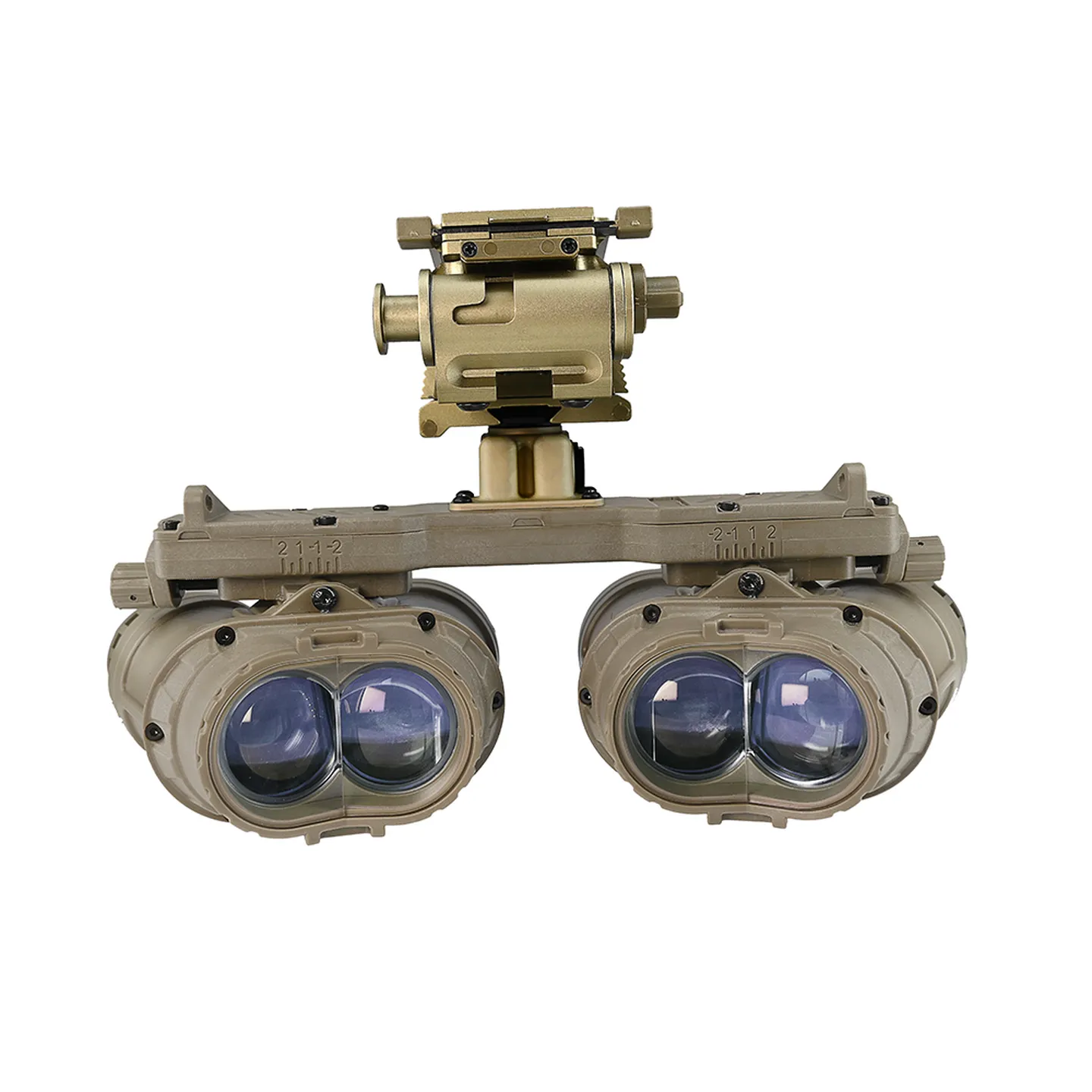

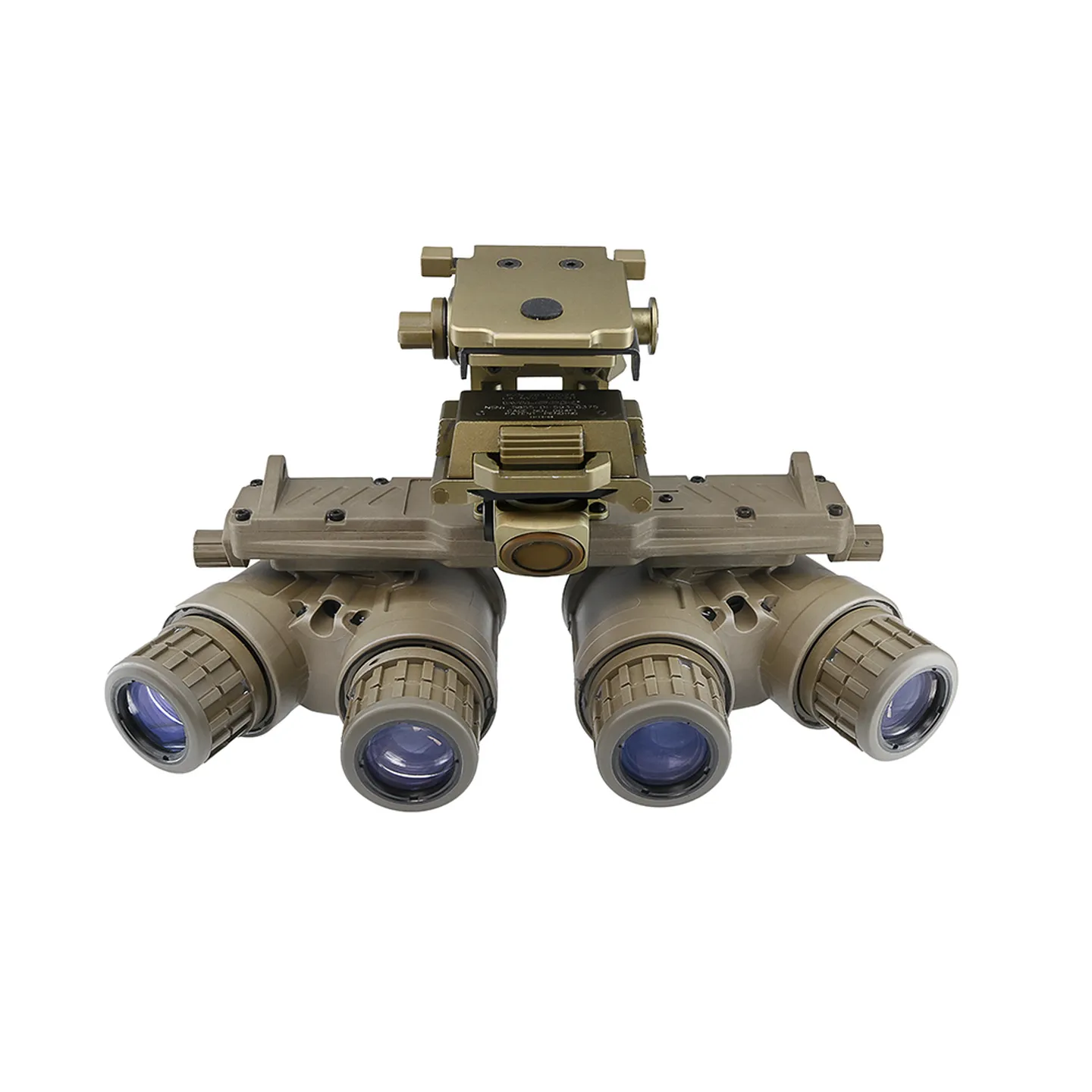

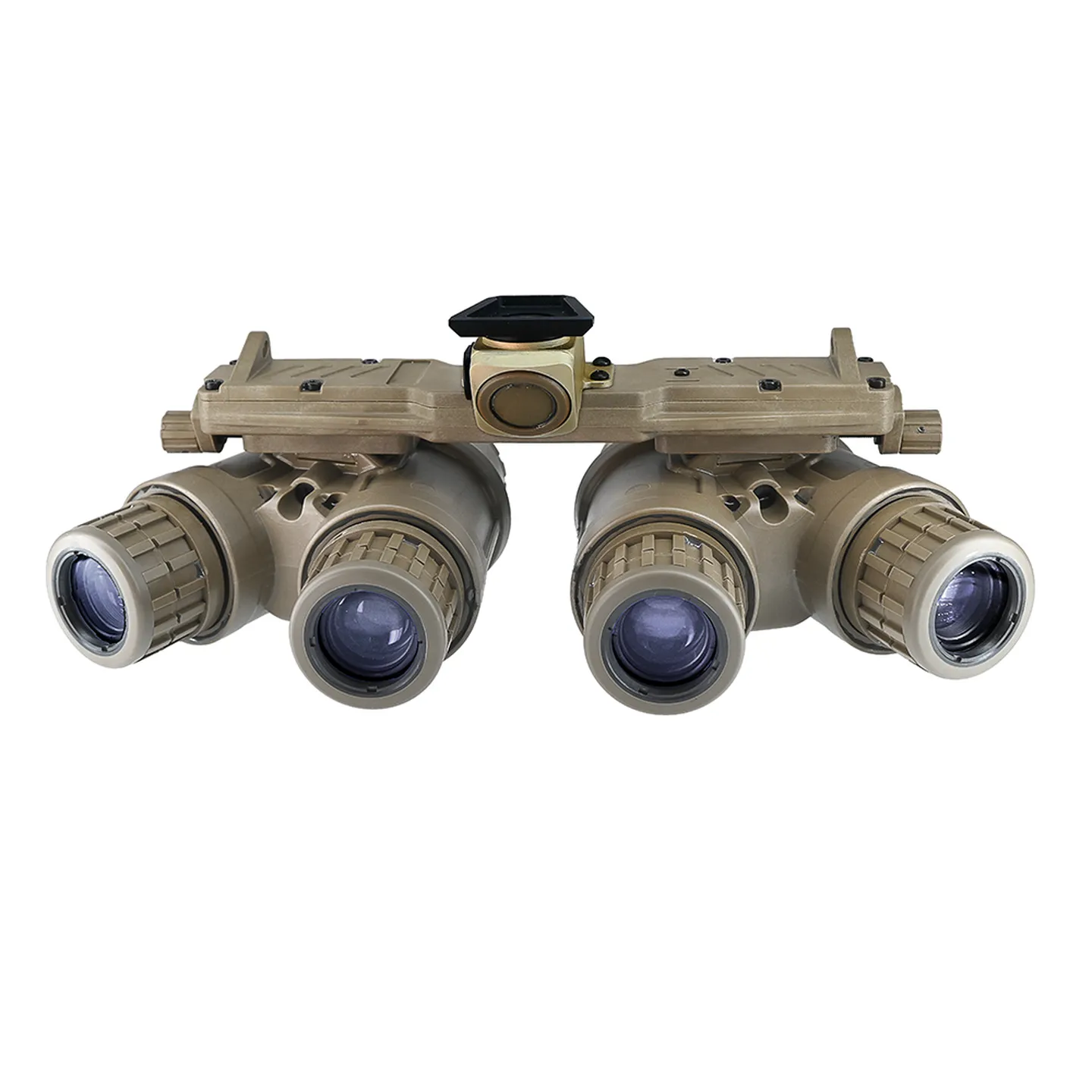

GPNVG-18 Panoramic Nightvision Goggle (IPNVG-18)

The INFREDAR Panoramic Nightvision Goggle (IPNVG) is a panoramic goggle system that increases a user’s field of view from a typical 40 degree monocular or binocular system up to 120 degrees. The IPNVG uses four image intensifier tubes in order to provide the increased field of view without decreasing system resolution or compromising collimation.

As the two center tubes are parallel and point forward, the center tubes will provide depth perception and increased perceived resoution and acuity through by providing stereoscopic vision. The outboard pointing tubes on each side will provide additional peripheral vision to the side that they are on, thus the user will perceive three circular fields of view.

Get a quote

Features

  • 120° Field of View for increased user awareness
  • High-resolution lens system
  • Fully collimating lens system
  • IP65-rated ingress protection, upgradeable to IP67
  • Officially Licensed Image Intensifier Tube for guaranteed superior image quality
  • Auto power-off when flipped up
  • Advanced FMC Technology – Objective lens adopts FMC (Fully Multi-Coated) technology for broad transmission band, low halo, and edge distortion
  • Powered by a built-in or external Li-ion battery pack with long runtime (30 to 80 hours)
  • Bright light protection
  • Wide operating temperature range: -51°C to +49°C

Technical Notes

For detailed specifications and imaging quality of the image intensifier tube, refer to the NNVT MX10160.

Functions including low-battery indicator, manual gain adjustment, and reticle are customizable.

For customization of other appearance and functions, please contact our technical specialists for further consultation.
