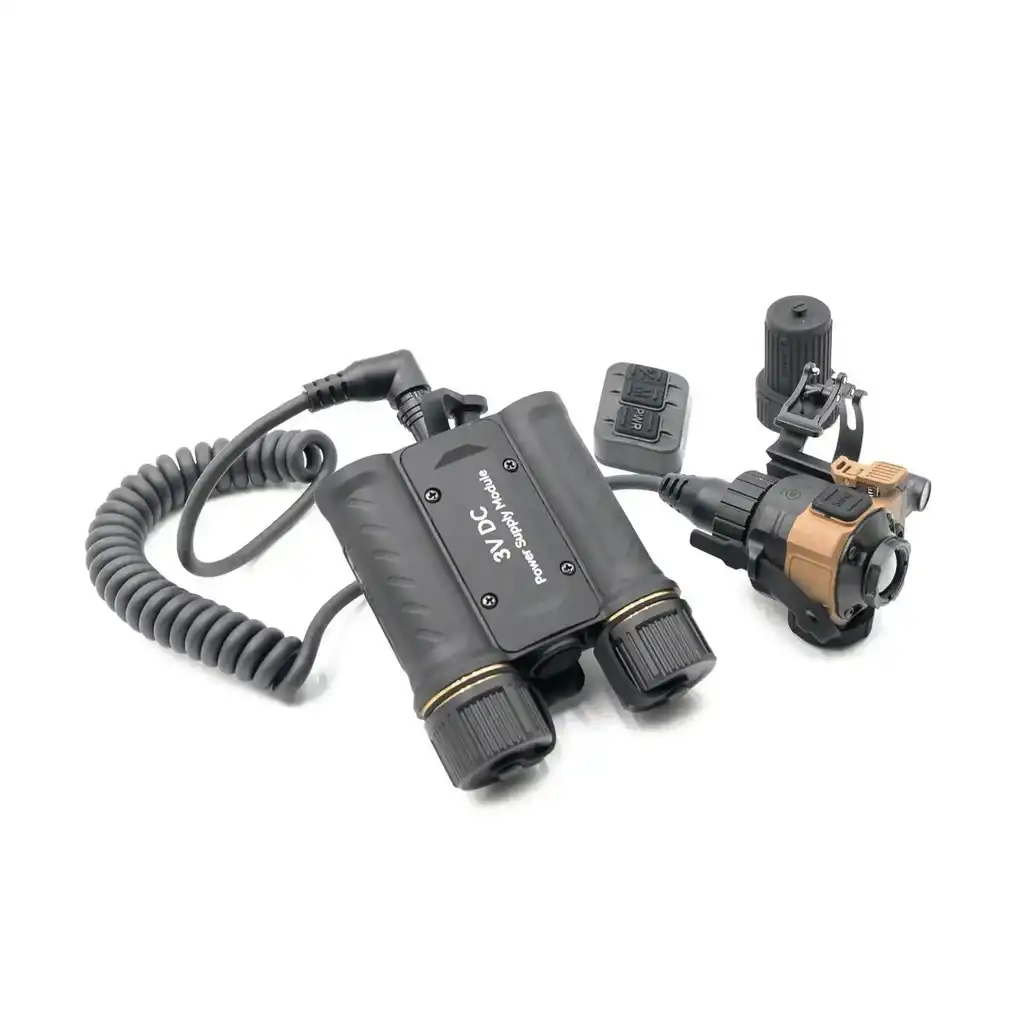

Jerry-C PRO Clip On Thermal Imager (COTI) full kit
Jerry-C PRO Clip On Thermal Imager (COTI)_04
Jerry-C PRO Clip On Thermal Imager (COTI)_03
Jerry-C PRO Clip On Thermal Imager (COTI)_02
Jerry-C PRO Clip On Thermal Imager (COTI)_01
INFREDAR

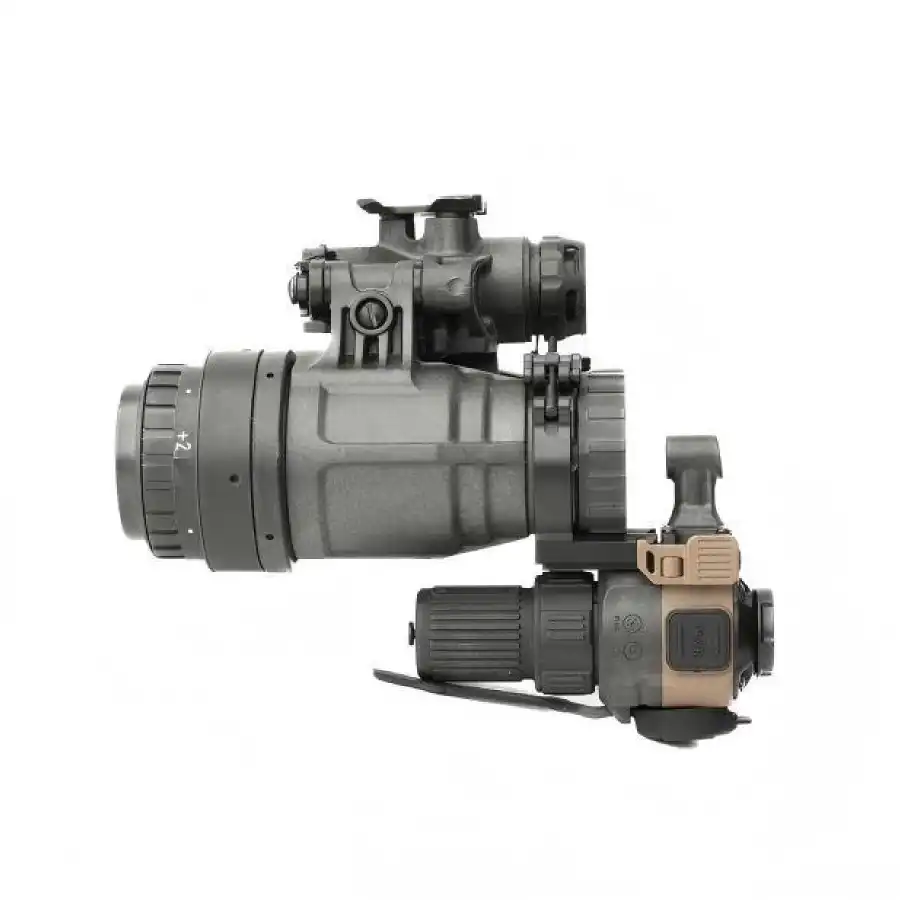

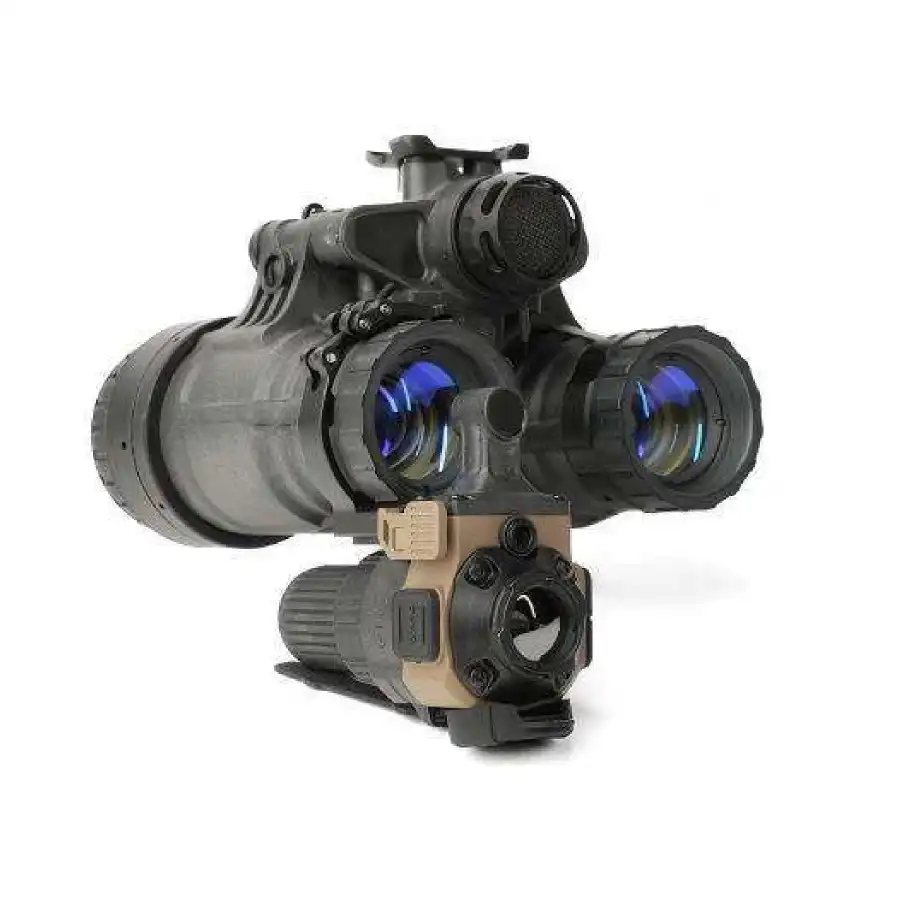

Jerry-C PRO Clip On Thermal Imager (COTI)

InfiRay RENV-C, widely recognized in the market as Chinese version of AN PAS29, is an advanced Clip-On Thermal Imager (COTI) designed as a direct upgrade to the original Jerry C. This device is engineered for seamless integration with low-light night vision systems, utilizing a front-mounted thermal fusion architecture. By leveraging long-wave infrared imaging technology and precision optical collimation, it projects a thermal image directly through the night vision objective lens onto the photocathode of the image intensifier tube (IIT). This creates a true optical overlay, effectively merging thermal signatures with ambient light imagery to produce a composite view.
The primary function of this fusion is to provide a critical complementary capability to traditional night vision. While low-light devices rely on amplifying existing ambient light, they often fail to distinguish targets hidden within visual obstructions such as dense foliage or total darkness. The Jerry C Pro overcomes this limitation by detecting the infrared heat radiated by objects, significantly enhancing target identification and situational awareness. Furthermore, the device is equipped with a suite of professional operational features, including versatile display modes (High-Brightness, Edge-Enhancement, and Breathing mode), intelligent power management, an integrated electronic compass, and remote control functionality via Bluetooth, ensuring it meets the rigorous demands of field use.
Get a quote

Key Features

  • Display Modes: High-Brightness mode, Edge-Enhancement mode, and Breathing mode (with adjustable threshold).
  • Brightness Control: Supports both manual and automatic brightness adjustment.
  • Power Management: Features auto power-off when flipped up or left stationary, along with a standby function.
  • Auto Refresh: Automatically refreshes the display to prevent image retention.
  • Electronic Compass: Integrated digital compass for navigation.
  • Bluetooth Remote: Supports remote operation via Bluetooth.
  • GPS/GNSS Positioning: Location tracking capability (requires an external device).
  • OSD Display: On-screen display for time and battery level.
  • Extended Battery Life: Capable of connecting to a helmet battery pack to achieve a maximum runtime of 10 hours.

Technical Specifications

  • Resolution: 640×512
  • Pixel Pitch: 12 μm
  • Aperture: F/1.0
  • Magnification: 1x
  • Field of View (FOV): 35°×30°
  • Target Identification Range: 275m (for a 1.7m×0.5m human-shaped target)
  • Minimum Fusion Distance: 10m
  • Power Supply: CR123A battery (main unit) / 18650 battery (battery box)
  • Battery Life: 3 hours (main unit only), 10 hours (with battery box)
  • Waterproof Rating: 1.5m / 0.5 hours

Compatibility & Package

  • Compatible Models: Supports mainstream single, dual, and quad-tube night vision devices, including BNVD1431, GPNVG18, PVS, PVS14, Nightfox 14, and Nightfox 31.
  • Package Contents: Jerry C Pro Main Unit, Mounting Base, Battery Box, Power Cable, Bluetooth Remote Control, Lens Cap, Carrying Pouch, Maintenance Tools, User Manual / Warranty Card, Hard Carry Case.

Critical Safety Notice

Due to the inherent working principle of front-mounted thermal fusion, the thermal image is projected directly onto the photocathode of the image intensifier tube (IIT). Unlike rear-mounted fusion which bypasses the IIT, this method inevitably accelerates IIT aging and increases the risk of burn-in. While this degradation can be mitigated by reducing brightness or utilizing the breathing mode, tube burn-in remains a high-probability event over time. Therefore, users possessing high-value, fragile image intensifier tubes—such as L3 filmless, Elbit thin-film, 4G/ECHO, or NVT7 tubes—are strongly advised to carefully consider this risk before purchasing this product.
