PVS-7 Bi-ocular Night Vision Goggles (IPVS-7)

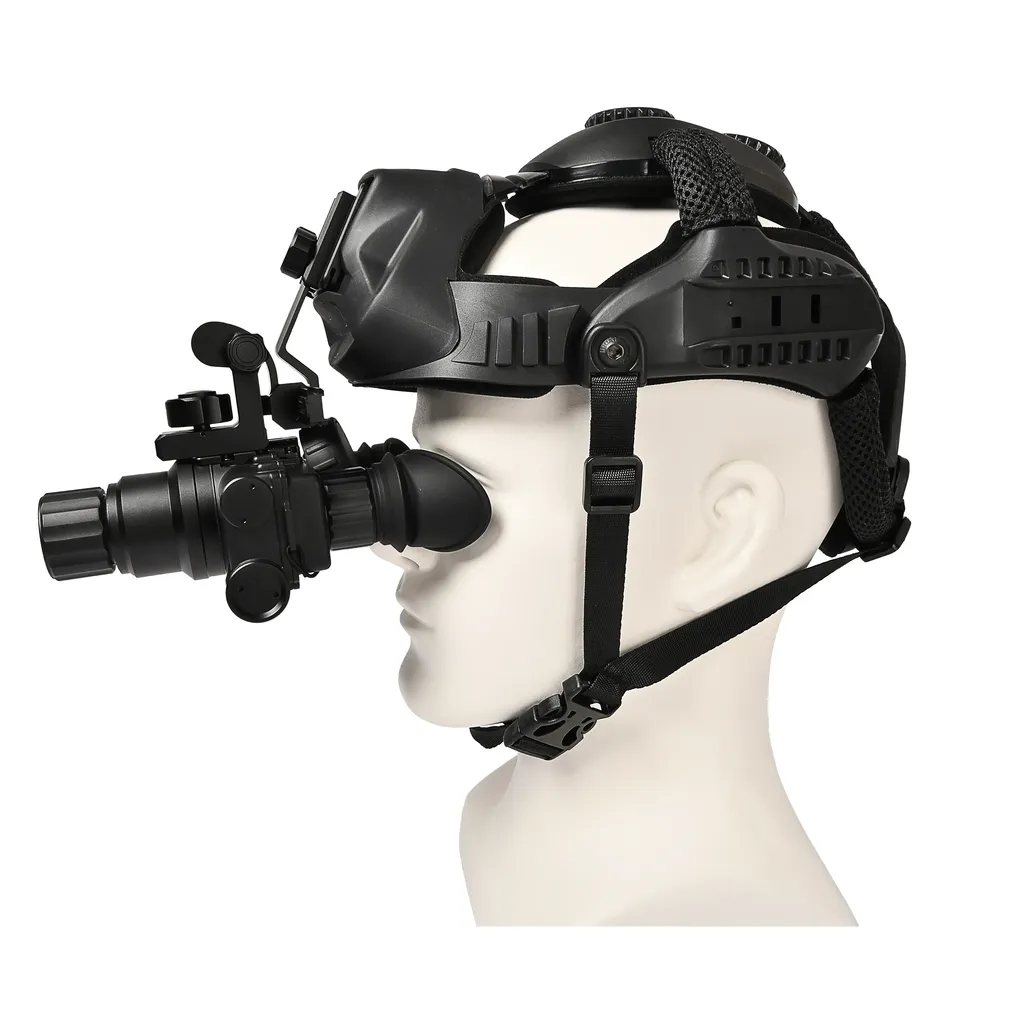

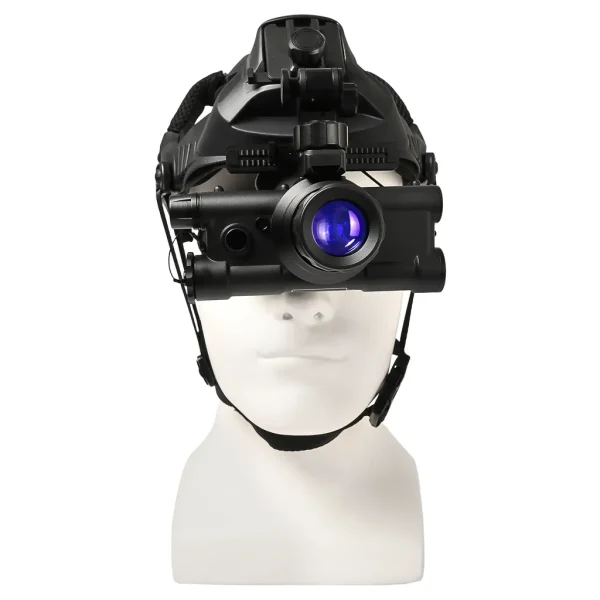

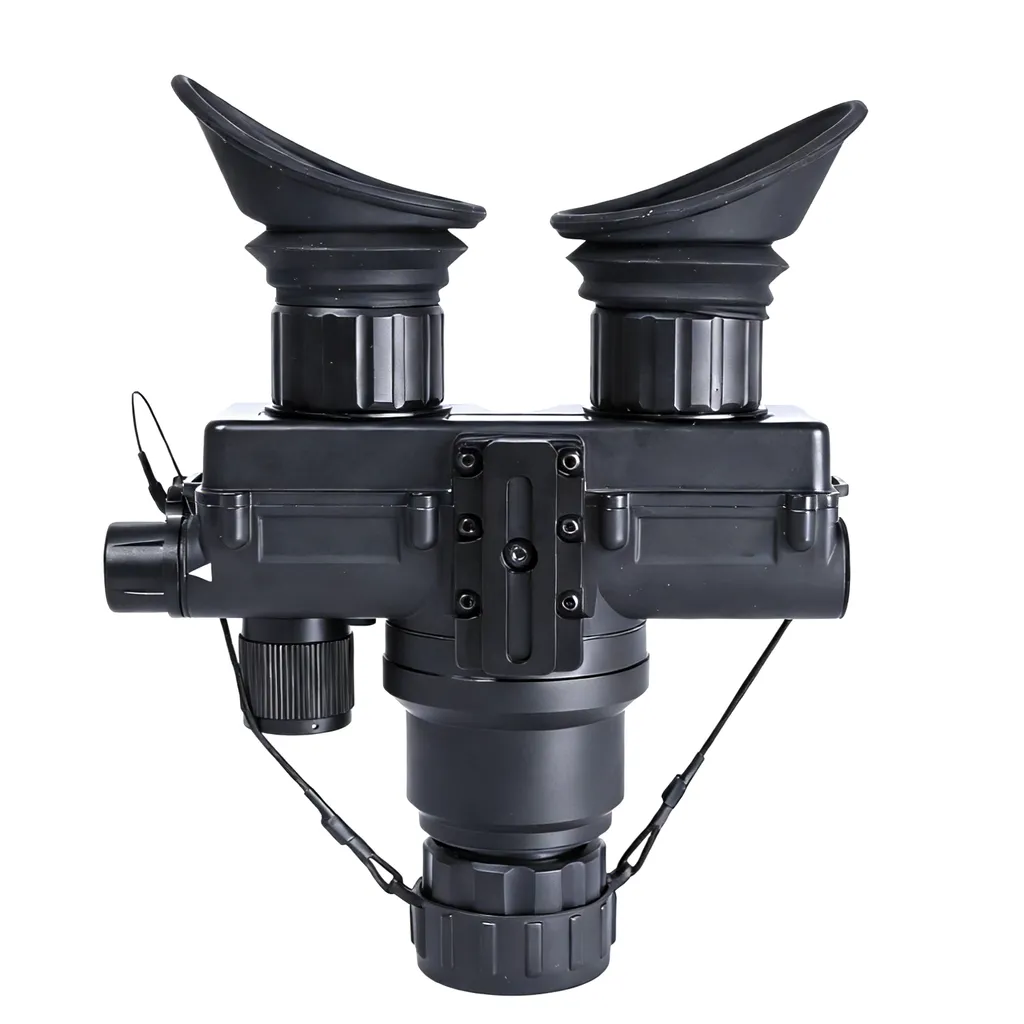

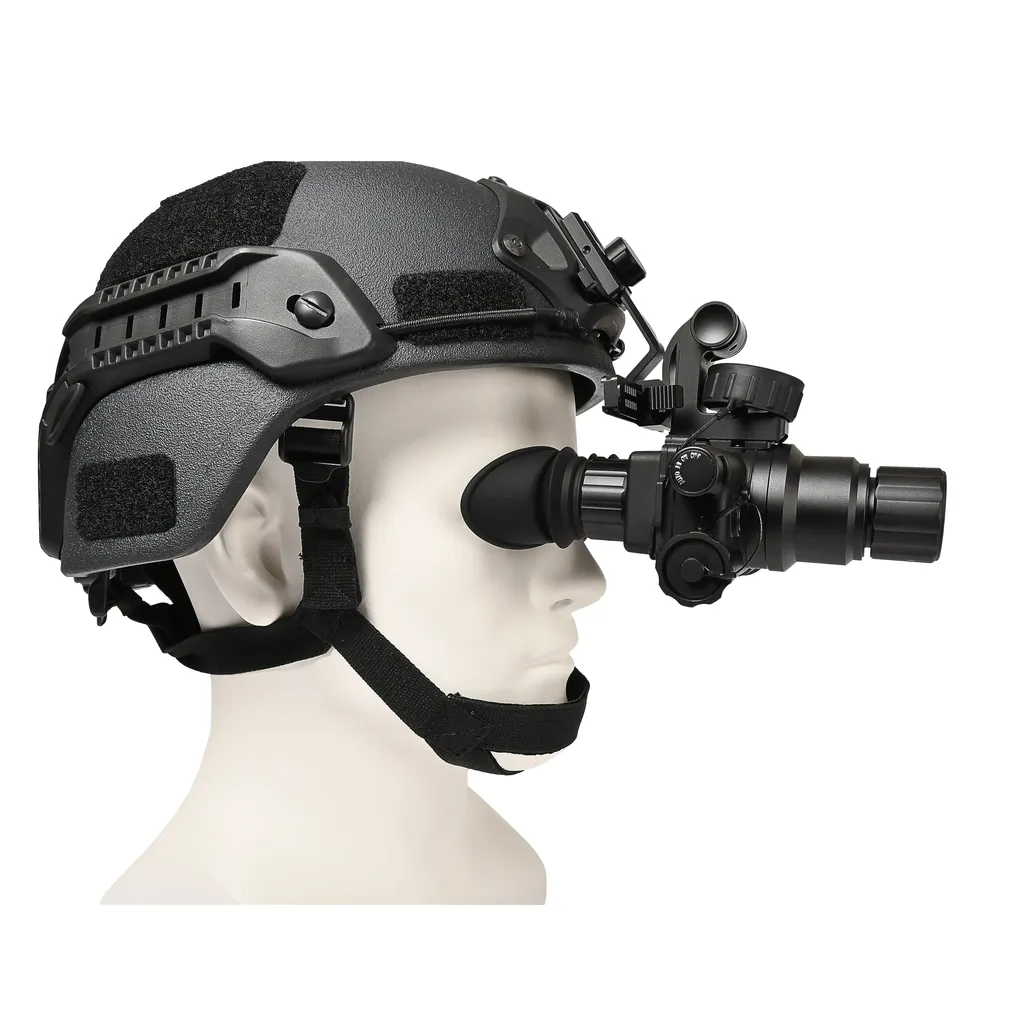

The IPVS-7 is a bi-ocular night vision goggle designed and manufactured by INFREDAR. It achieves binocular vision through an advanced optical system with a single image intensifier tube. Meeting military standards, it is crafted from aviation-grade aluminum alloy, offering exceptional ruggedness and durability for reliable performance in harsh environments with an operating temperature range of -51°C to 49°C. Powered by either one CR123A battery or two AA batteries, it delivers a runtime of at least 40 hours per battery change (up to 80 hours without IR illuminator activated). Integrated with an IR illuminator, its objective lens adopts advanced FMC (Fully Multi-Coated) technology, featuring a broad transmission band, low halo, low edge distortion, and high light transmittance.

It maintains a low cost while significantly enhancing usability, making it an ideal choice for both enthusiasts and professional users.

Get a quote

Features

  • Phosphor Options: Available in both White Phosphor (WP) and Green Phosphor (GP).
  • Adopts aviation-grade aluminum alloy housing and special surface treatment process, which offers high strength, high temperature resistance, for reliable use in harsh environments
  • IP65-rated ingress protection, upgradeable to IP67.
  • Officially Licensed Image Intensifier Tube for guaranteed superior image quality
  • Auto power-off when flipped up
  • Field of view (FOV) options: 40° or 50°
  • Advanced FMC Technology – Objective lens adopts FMC (Fully Multi-Coated) technology for broad transmission band, low halo and edge distortion
  • Powered by a single CR123A battery (or two AA batteries) with long runtime (over 40 hours per charge, up to 80 hours without IR)
  • Automatic gain adjustment
  • Bright light protection
  • Wide operating temperature range: -51°C to +49°C

Magnifier

This product can be used with a 3x, 5x and 6x magnification magnifier to achieve . Note that using the magnifier will significantly increase the product weight; please use it with a handle or tripod.

Learn more about the magnifier.

Technical Notes

For detailed specifications and imaging quality of the image intensifier tube, refer to the NNVT MX10160.

Functions including low-battery indicator, manual gain control, and reticle are customizable.

For customization of special appearance and functions, please contact our technical specialists for further consultation.
